Clean-in-Place (CIP) for Viscous Fluids: Challenges & Solutions in Food Plants

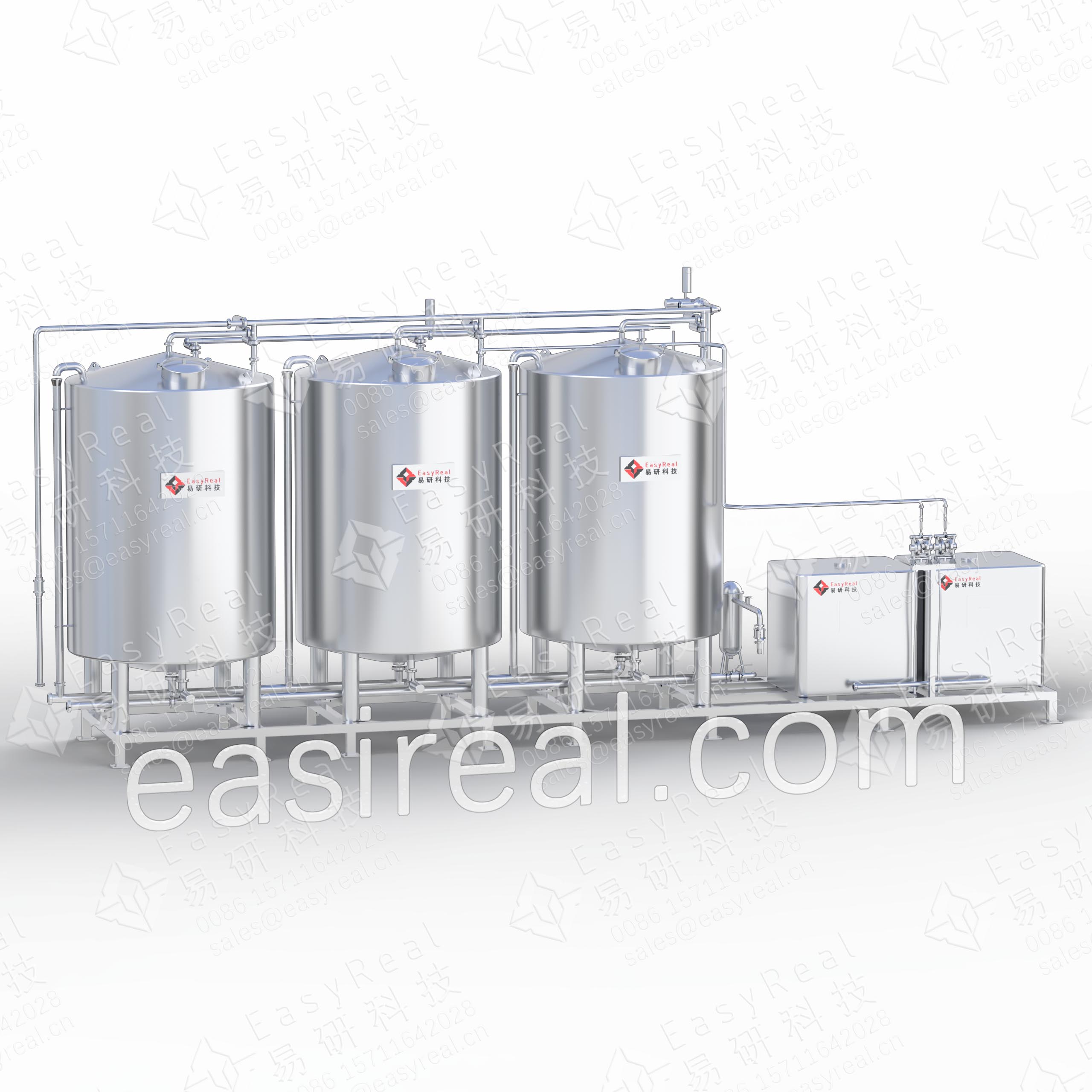

 Description of EasyReal CIP Systems for Viscous Fluids

EasyReal’s CIP Systems for viscous fluid production lines integrate high-pressure circulation, jacketed heating, and turbulence-inducing design to effectively remove residues from pipes, tanks, and equipment. Traditional CIP systems often struggle with sticky or slow-flowing residues, but EasyReal overcomes this by engineering systems with optimized flow paths, increased turbulence zones, and precise thermal control.

The system includes:

• Pre-rinse, alkali wash, acid rinse, and final rinse modules.

• Optional recirculation loops for water and detergent reuse.

• Compatibility with jacketed tanks, inline mixers, and high-viscosity pumps.

The EasyReal CIP system ensures minimal product loss, rapid cycle times, and automated validation reports—all controlled via an intuitive HMI interface. These features not only enhance food safety but also reduce water, energy, and chemical consumption, making them ideal for plants striving toward sustainable manufacturing.

Application Scenarios of EasyReal CIP Systems

EasyReal’s CIP solutions are widely used in industries where high-viscosity materials are present, including:

• Tomato paste and puree production lines

• Condiments and savory sauces, such as chili sauce, ketchup, mayonnaise

• Fruit concentrate and jam plants

• Peanut butter and nut spread factories

• Confectionery and dairy processing, including condensed milk and flavored creams

In these settings, traditional manual cleaning is labor-intensive, inconsistent, and time-consuming. EasyReal automates this process with high-efficiency Clean-in-Place systems, specifically tuned to handle low shear-sensitive materials and solid-laden mixtures. The system’s adaptability across batch and continuous production lines makes it a preferred solution for global food processors dealing with diverse product ranges.

Viscous Fluids Require Specialized Processing Lines

Viscous ingredients such as purees, thick sauces, and nut pastes exhibit non-Newtonian flow behaviors, meaning their resistance to movement varies under stress. This physical property leads to major cleaning difficulties such as:

• Residue buildup in dead zones

• Poor drainage during rinse cycles

• Inefficient flow in horizontal or low-slope piping

• Retention of allergens or flavor compounds

Moreover, these materials tend to form films on equipment surfaces, which can harbor microbial contamination if not thoroughly removed. EasyReal addresses these challenges by customizing:

• Pipe diameters and slopes

• Spray ball positions and nozzle pressures

• Heating profiles and flushing sequences

Only with such detailed customization can a CIP system for viscous fluids achieve the cleaning-in-place standards demanded by HACCP and FDA protocols.

Auto-Generated Adaptive Paragraph: Product Safety and Consumer Health

Viscous food products—especially those rich in natural sugars, oils, and proteins—are particularly prone to microbial growth if cleaning is insufficient. Residual buildup can lead to biofilm formation, cross-contamination, or even product recalls. CIP systems designed for these product types must account not just for cleaning effectiveness but also for validation and traceability.

EasyReal systems include:

• Sensor-based verification of temperature and flow

• Automated report generation for every cleaning cycle

• Integration with digital recipe systems to match cleaning intensity with specific products (e.g., a fruit jam line vs. a peanut butter line)

With the increasing focus on food safety regulations and global export standards, a tailored viscous-CIP solution is no longer optional—it’s essential.

How to Choose the Right CIP System for Viscous Fluids

Choosing the right CIP system depends on several key variables:

• Production capacity: Higher volumes may require multi-loop CIP or larger detergent tanks.

• Product range: Lines switching between fruit purees, dairy pastes, and condiments need more flexible cycle configurations.

• Residue characteristics: Sticky, heat-sensitive, or oil-rich products demand specific rinse pressures and detergent types.

• Line layout: Long, horizontal pipes vs. compact skid-mounted systems affect pump pressure and nozzle placement.

EasyReal offers modular CIP configurations:

• Single-loop or multi-loop setups

• Automatic valve clusters to isolate sections

• Energy recovery systems (e.g., heat exchangers on return lines)
  Our engineers provide full on-site audits and simulations to determine the optimal setup for your unique production conditions.

Flow Chart of CIP Process for Viscous Fluid Lines

Below is a typical CIP sequence engineered for viscous food product lines, with real-world considerations in mind:

1. Pre-rinse with warm water: Removes bulk residues; flushes pump cavities and pipe bends.

2. Alkaline wash cycle: Uses high-pH detergent, elevated temperatures (60–85°C), and turbulence boosters to break down fats and proteins.

3. Intermediate rinse: Removes detergent residues and stabilizes temperature.

4. Acid wash (if required): Targets mineral scale and pectin-based deposits from fruit purees or sauces.

5. Final rinse with purified water: Ensures no chemical traces; prepares system for next production.

6. Optional sterilization (e.g., steam injection or chemical disinfectant): Applied in aseptic or export-grade product lines.

EasyReal’s control systems adjust flow rate, duration, and pressure dynamically based on viscosity profiling and previous cycle data.

Key Equipment in the CIP System for Viscous Fluids

A robust Clean-in-Place (CIP) system for viscous fluids depends on a well-integrated combination of purpose-built equipment. EasyReal provides a modular suite of components, each tailored to the unique demands of high-viscosity product environments：

① High-Shear CIP Circulation Pump
Designed to deliver turbulent flow through dense, sticky products. These pumps feature enlarged impeller clearance, thermal resistance, and back-flush capability to avoid clogging. Compared with standard centrifugal pumps, EasyReal’s CIP pumps maintain stable flow even in piping systems with residue drag.

② Jacketed Cleaning Solution Tank
Maintains precise temperature control (±1°C) of cleaning media. This is critical for dissolving fats, emulsified residues, and pectin films. The jacketed design prevents local overheating and supports continuous heating during long cycles.

③ Multi-Position Spray Balls & Turbine Rotors
Integrated into mixing tanks and holding vessels, EasyReal’s turbine spray heads provide dynamic 360° coverage. Compared to static spray balls, these rotors minimize shadow areas, reduce chemical usage, and improve cleaning efficacy in tank corners.

④ Automated Valve Manifold Cluster
Enables zoned cleaning, cross-contamination prevention, and cycle reuse logic. With full PLC integration, the system can selectively isolate filling lines, pasteurizers, or homogenizers during cleaning.

⑤ Inline Conductivity & Flow Sensors
Ensure precise detergent concentration and verify successful rinsing steps. This eliminates manual verification and enables auto-cycle validation with full digital traceability.

⑥ Heat Exchanger Integration Module
Optional plate heat exchanger units recover heat from used CIP solutions, reducing energy usage up to 30%. This module is especially useful for fruit sauce and jam production lines, where cleaning temperatures are elevated.

Together, these components create a closed-loop, high-efficiency, auto-verifiable CIP platform ready to meet global food industry standards.

Material Adaptability & Output Flexibility

Viscous fluid processing lines often deal with a wide spectrum of raw materials, each presenting unique cleaning challenges. EasyReal’s CIP systems are engineered for broad material adaptability, covering both plant-based and dairy-based inputs：

• Tomato paste & fruit pulps：High fiber content and pectin require long alkali cycles and acid treatment.

• Peanut butter & nut pastes：Oil-heavy residues demand surfactant-enhanced detergents and elevated cleaning temperatures.

• Condensed milk & dairy concentrates：Require strict allergen control and antimicrobial assurance with hot water and steam sterilization.

• Mixed sauces & condiments：Must handle both oil and particulate phases, requiring dual-action cleaning logic.

Moreover, lines that shift between products (e.g., from mango pulp to chili sauce) benefit from pre-programmed CIP recipes stored in the EasyReal HMI. The CIP system adjusts cleaning intensity and cycle time based on prior production batches, enabling quick changeovers with minimal waste.

Sanitary Design and Cleaning Systems (CIP/SIP)

Sanitation is at the heart of EasyReal’s equipment philosophy. Every CIP system for viscous fluids integrates sanitary-grade components, ensuring no microbial hotspots, allergen retention, or dead legs in the process.

Key sanitary design features include:

• All stainless steel AISI 316L contact surfaces, electropolished to ≤0.4 µm Ra for minimal residue adherence.

• Self-draining piping with slope design and crevice-free connections.

• EHEDG-compliant hygienic valves and seals resistant to chemical degradation.

• Compatibility with SIP (Sterilization-in-Place) modules for ultra-high hygiene lines.

Furthermore, EasyReal offers optional auto-reporting software that logs every CIP/SIP cycle with:

• Start/end time

• Temperature curve

• Chemical concentration profile

• Flow verification

These logs ensure compliance with ISO 22000, FDA CFR 21, and HACCP protocols, which is especially critical for exporters of purees, sauces, and ready-to-eat products.

Auto-Generated Adaptive Paragraph: Energy Efficiency & Environmental Sustainability

Beyond hygiene, EasyReal’s viscous-fluid CIP systems are optimized for energy efficiency and sustainability. High-viscosity production lines are typically energy-intensive to clean, but our systems use several technologies to reduce footprint：

• Water & chemical reuse logic: The system recovers partially used rinse and alkali solutions for preliminary wash stages, cutting detergent usage by up to 40%.

• Heat energy recovery: Plate heat exchangers reuse heat from return cycles, reducing boiler dependency.

• Cycle optimization algorithms: Adaptive logic reduces rinse time when inline sensors detect minimal residue, eliminating unnecessary water flow.

These features directly support the goals of ESG compliance and carbon footprint reduction, making EasyReal a strong partner for global brands targeting green certification, such as LEED, ISO 14001, or BRCGS sustainability initiatives.

Smart Control System by EasyReal

EasyReal’s CIP systems for viscous fluids are powered by advanced PLC + HMI control panels, built for operational precision and user-friendly interface. Key features of the smart control module include:

• Pre-programmed CIP recipe database: Operators can select cleaning protocols based on previous product batches (e.g., chili sauce vs. mango puree), ensuring tailored cycles.

• Real-time monitoring dashboard: Displays temperature, pressure, conductivity, and flowrate graphs for every active line.

• Auto-error detection: Alarms for sensor drift, valve malfunction, or flow disruption reduce downtime and maintenance cost.

• Recipe locking and access control: Prevents unauthorized adjustments, improving consistency across cleaning cycles.

• Remote access module (optional): Enables remote troubleshooting and parameter adjustments via secure VPN connection.

EasyReal integrates well with existing SCADA or MES platforms, allowing factory-wide coordination, traceability, and digital validation of food safety processes.

Optional Functional Units & Modular Upgrades

To future-proof your CIP investment, EasyReal offers a series of modular extensions and optional units that expand system capabilities:

• Steam sterilization units: For aseptic environments or export-grade production.

• Mobile CIP skids: Ideal for multi-line factories, allowing flexible deployment across processing zones.

• Auto-dosing chemical modules: For precise control over detergent and acid usage with minimal operator input.

• UV or ozone sanitation stage: Adds non-thermal disinfection, especially valuable in organic or baby food processing lines.

• Dual-Circuit Configuration: Allows simultaneous cleaning of two separate production zones, increasing uptime.

All modules are built with plug-and-play architecture, ensuring minimal disruption during upgrades. Whether expanding capacity or shifting product focus, EasyReal’s modular CIP ecosystem grows with your factory.

Ready to Build Your CIP System for Viscous Food Processing?

If your production line struggles with the cleaning of thick sauces, fruit purees, nut pastes, or high-viscosity dairy products, EasyReal has the turnkey solution you need. Our Clean-in-Place systems for viscous fluids are already serving clients across Asia, Europe, the Middle East, and the Americas, with proven results in reducing cleaning time, water use, and contamination risks.

From initial process auditing to 3D layout planning, installation, commissioning, and after-sales training, EasyReal ensures a smooth implementation path. Whether you’re upgrading a legacy line or building a new factory, our CIP solutions are tailored for your capacity, space constraints, and hygiene targets.
