Aseptic Tank System in Fluid Food Processing
An Aseptic Tank System sits after the UHT unit and before the aseptic filler. It does more than hold product for a short time. It gives the line a stable sterile holding point and helps the full process run more smoothly.
After UHT processing, the product is already sterile. However, it still needs protection from outside microbes before final packaging. Losing sterility at this stage destroys much of the process's value. That is why the Aseptic Tank System is such an important part of the line.
It creates a closed and controlled space between heat treatment and packaging. This space helps keep the product safe until filling.
In real production, UHT processing and filling do not always run at the same speed. The filler may pause briefly, and product flow may change. Operators may also switch package sizes or deal with short stops. The aseptic tank absorbs these changes and helps the line keep running smoothly.
This system is ideal for liquid foods requiring strict hygiene and consistent quality. Examples include UHT milk, pulpy juices, chocolate beverages, and plant protein drinks. Some producers compare it with hygienic storage systems used in pasteurized milk lines. However, a true Aseptic Tank System is essential for lines that must maintain sterility after UHT processing.
One of its main jobs is to balance capacity between the UHT section and the filler. In daily production, these two parts of the line often run at different speeds. The aseptic tank connects them and reduces unnecessary stops.
It also helps reduce product waste. Without a sterile buffer tank, even a short filler stop forces operators to discard heat-treated products. With the tank in place, the line can hold product safely for a period of time and keep production more flexible.
This matters most in aseptic packaging lines, where the product must stay sterile from the UHT unit to the package. The system protects product sterility during holding and transfer. It relies on a polished tank interior, aseptic valves, steam barriers, sterile air, and automated controls.
A standard Aseptic Tank System usually includes several key parts. Each one helps keep the line clean, sterile, and reliable.
1. Aseptic Tank Vessel
Manufacturers usually build the tank from 316L sanitary stainless steel. They polish the inner surface to a very high level, often Ra ≤ 0.4 μm. This smooth finish reduces product build-up, makes cleaning easier, and lowers the risk of hidden residue.
The vessel also needs to handle demanding operating conditions. During SIP, hot steam creates high temperature and pressure inside the tank. During cooling, the vessel may face vacuum conditions. The tank therefore needs a strong vessel, high-quality welds, and a hygienic design that removes unnecessary dead corners.
Many systems also include an external jacket. The jacket can help with heat holding, cooling, or temperature control. Insulation and an outer stainless steel cover help keep the system stable and clean.
2. Aseptic Valve Cluster and Piping System
The valve cluster controls product flow, CIP switching, SIP routing, and separation from the outside environment. It is one of the most important parts of the system. The system uses several valves to protect the sterile zone at critical points. These include aseptic diaphragm valves, mixproof valves with steam barriers, and bellows-sealed valves. These valve types help block outside microbes from entering through stems, seals, or other sensitive areas.
Engineers design the piping with proper slopes, short dead legs, and high-quality welds. This ensures reliable cleaning and steam sterilization. In an aseptic line, the piping does more than move product. It also helps protect the sterile boundary.
3. Sterile Air or Gas System
As the tank fills or empties, the pressure inside changes. Pressure control also matters during standby. Without clean gas support, outside air may enter the vessel and break the sterile condition.
To prevent this, the system uses a Sterile Air or Gas System. It filters compressed air or nitrogen in multiple stages. The final stage uses a 0.22-micron sterilizing-grade filter.
The system then feeds clean gas into the tank to maintain stable positive pressure. This protection is essential in aseptic packaging lines. It keeps the product safe during operation and waiting periods.
4. Agitation System
Some liquid foods settle, separate, or form layers during holding. This often happens in juice with pulp, chocolate drinks, and some plant-based beverages. In these cases, the aseptic tank may include an agitation system to keep the product mixed evenly.
Common options include a bottom-mounted aseptic magnetic agitator. Users can also choose top- or side-entry agitators with steam-protected mechanical seals. These designs help maintain product consistency while still protecting the sterile condition inside the tank.
5. CIP and SIP System
Good cleaning and proper steam treatment are essential for stable long-term operation. The CIP system cleans the inside surfaces of the tank, pipes, valves, and related parts after production. It usually uses alkali, acid, hot water, or other cleaning liquids. The tank top often includes hygienic spray balls or rotary jet heads so the cleaning liquid can cover all key areas.
The SIP system prepares the line before production. It sends clean industrial steam through the tank, filters, pipes, and valves to make the whole system sterile. In many systems, SIP runs at 121°C to 130°C or higher, depending on the process design. The line starts production only after it reaches the required temperature, pressure, and holding time.
6. Safety Protection Devices
The aseptic tank goes through large pressure and temperature changes during steam treatment and cooling. Because of this, the system needs reliable safety protection.
A standard setup often includes sanitary safety valves, rupture discs, and pressure protection logic. These devices protect the vessel if the pressure rises too high.
During cooling, the tank may also face vacuum risks. A special sterile anti-vacuum valve protects the vessel from strong inward pressure. This design prevents deformation and structural damage.
7. Sensors and Automatic Control System
Modern Aseptic Tank Systems depend on accurate sensors and reliable automatic control. Most systems include temperature sensors, pressure transmitters, and level monitoring devices.
In many aseptic lines, engineers avoid contact-type level sensors because they may increase risk inside the sterile zone. Instead, they often place the whole tank on load cells. This method lets the system measure product weight and liquid level accurately without direct contact with the product.

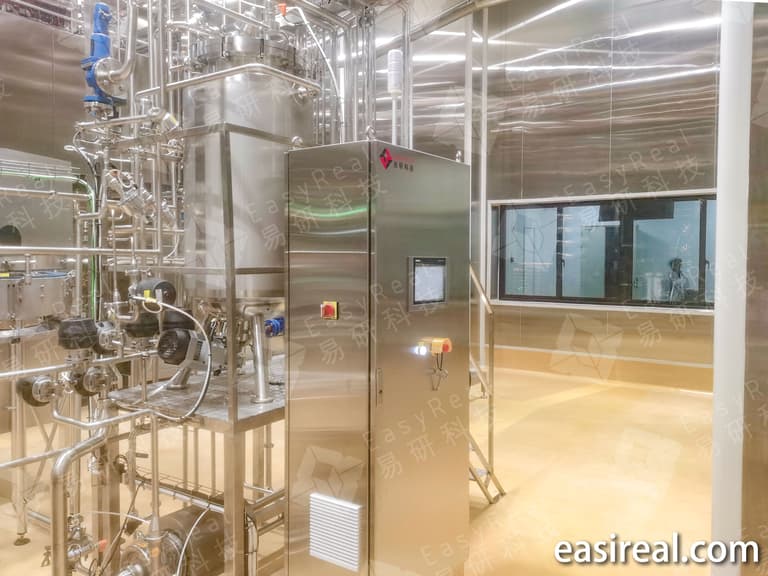

The control system manages CIP, SIP timing, sterile standby mode, positive pressure control, product transfer, alarms, and safety interlocks. Process conditions like temperature, pressure, or filter status must stay within safe limits. Otherwise, the control system triggers an alarm and stops the process.
During production, the product first passes through the UHT system. After ultra-high-temperature processing, it moves through sterile piping into the aseptic tank. Before this step, the tank has already completed its SIP cycle and is ready for sterile operation.
Inside the tank, the product stays under sterile positive pressure until the filler needs it. If the aseptic filler slows down or stops briefly, the tank can still receive product from the UHT section. If the UHT flow changes, the tank can still supply product to the filler at a steadier rate.
This working principle is especially useful for UHT milk, flavored milk drinks, fruit juice, tea beverages, and plant-based drinks. These products often need stable hygiene control, gentle handling, and reliable buffering before aseptic packaging.
A well-designed Aseptic Tank System improves shelf life, flavor stability, and product safety. It also boosts overall line efficiency for beverage production. This is especially true for producers making UHT milk and other long-life beverages for aseptic packaging.
Standard pasteurized milk lines usually rely on chilled storage and different hygiene controls. However, an aseptic tank system is the best choice for complete sterile buffering. It safely connects ultra-high-temperature processing to aseptic filling. This is where the system shows its strongest value.
Every part of an Aseptic Tank System supports three main goals. It must clean the system, sterilize it, and maintain a reliable sterile barrier during production. The tank is not just an extra unit between the UHT system and the filler. It plays a central role in protecting product quality all the way to the final package.
The aseptic tank system connects ultra-high-temperature processing to aseptic packaging. This creates a stable and sterile buffer before filling. This design highly benefits UHT milk, dairy beverages, fruit juices, and plant-based drinks. These products require strict hygiene control and stable filling.
For manufacturers building a high-standard fluid food line, choosing the right aseptic tank system is an important step. The right system improves hygiene, line stability, and product consistency. It works perfectly for dairy, juice, plant protein beverages, and other liquid foods.
