Modular Lab UHT HTST Pasteurizer Plant for Dairy Milk in Laboratory
Modular Lab UHT HTST Pasteurizer Plant is act as the advanced production technology crystallization which is combined with the most advanced science and technology developed by EasyReal Tech. which is considered as the professional manufacturer for supplying Lab UHT HTST System and Lab UHT HTST Pasteurizer System.
EasyReal Tech. is well known as it is the State-certified High-tech Enterprise located in Shanghai city, China which has obtained ISO9001 Quality Certification, CE Certification, SGS Certification, etc.
Involved with 40+ independent intellectual property rights, the Modular Lab UHT HTST Pasteurizer Plant will be the friendly assistant for the research in your R&D center.
1. Dairy Milks
2. Plant-based Product
3. Fruit and Vegetable Juices & Puree
4. Health and nutritional products
5. Coffee & Tea Drinks
6. Alcoholic Drinks
7. Soups & Sauce
1. Compact, mobile, easy to Install & Operate
2. Modular Design---Extensive flexibility.
3. Wide Range of Applications.
4. Multifunctional---Full function.
5. Inbuilt CIP & SIP function
6. Hygienic Design.
7. Pre-assembled and factory-tested before delivery
8. High Reliability with low cost for maintenance.
|
1 |
Name |
Modular Lab UHT HTST Pasteurizer Plant |
|
2 |
Model |
ER-S20, ER-S100 |
|
3 |
Type |
Lab UHT HTST & Pasteurizer Plant for R&D Center and Laboratory |
|
4 |
Rated Flow Rate |
20 l/h & 100l/h |
|
5 |
Variable Flow Rate |
3~40 l/h & 60~120 l/h |
|
6 |
Max. pressure |
10 bar |
|
7 |
Minimum batch feed |
3~5 liters & 5~8 liters |
|
8 |
SIP function |
Inbuilt |
|
9 |
CIP function |
Inbuilt |
|
10 |
Inline Upstream Homogenization |
Optional |
|
11 |
Inline Downstream Aseptic Homogenization |
Optional |
|
12 |
DSI Module |
Optional |
|
13 |
Inline Aseptic filling |
Available |
|
14 |
Sterilization Temperature |
85~150 ℃ |
|
15 |
Outlet Temperature |
Adjustable. the lowest could reach ≤10℃ by adopting water chiller |
|
16 |
Holding time |
5 & 15 & 30 Seconds |
|
17 |
300S Holding tube |
Optional |
|
18 |
60S Holding tube |
Optional |
|
19 |
Steam generator |
Inbuilt |
The compact Lab UHT HTST Pasteurizer Plant totally simulates Commercial Production which build the bridge from R&D center to Commercial run. All the Experimental data, like product flow rate, sterilization temperature and sterilization time, etc. obtained on Lab UHT HTST System Plant in R&D Center, which could be completely copied to pilot plant, and then completely copied to commercial run.

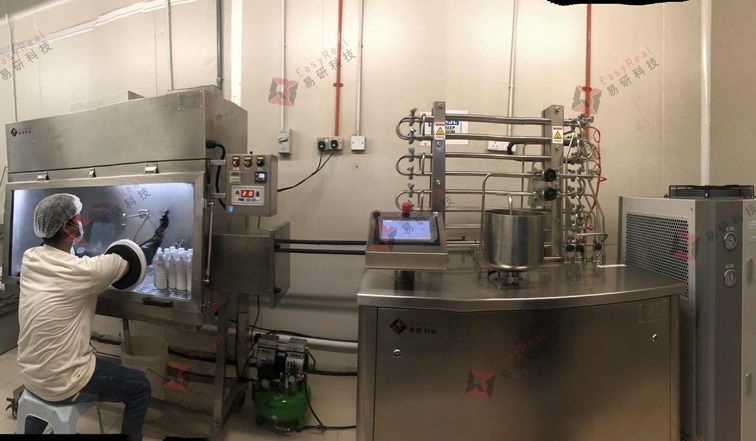

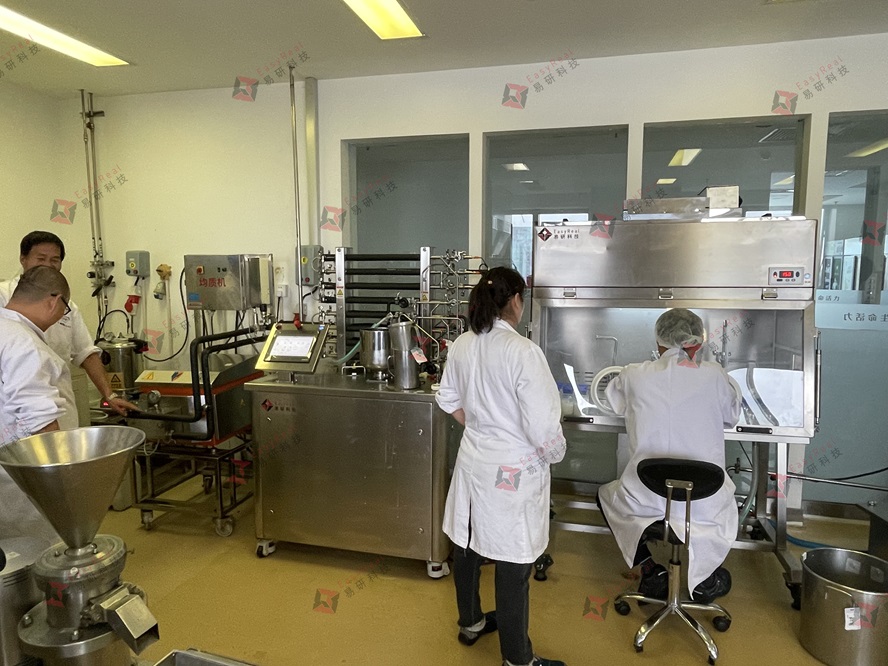

Lab UHT HTST Pasteurizer Plant is a friendly assistant for developers which enables operators to run a trial with 3 liters of product in R&D center or Laboratory. By this way, much time is saved which allows developers to conduct more trials in a day. The Lab UHT HTST plant with Pasteurizer System much improves R&D productivity.
Lab UHT HTST Pasteurizer Plant adopts advanced PLC program. The clear dynamic overview of all process, including temperatures, flow rates, and pressures, is given on the Siemens Touch Screen with a high resolution. During startup, processing, cleaning and sterilization, the operator is guided by the PLC.

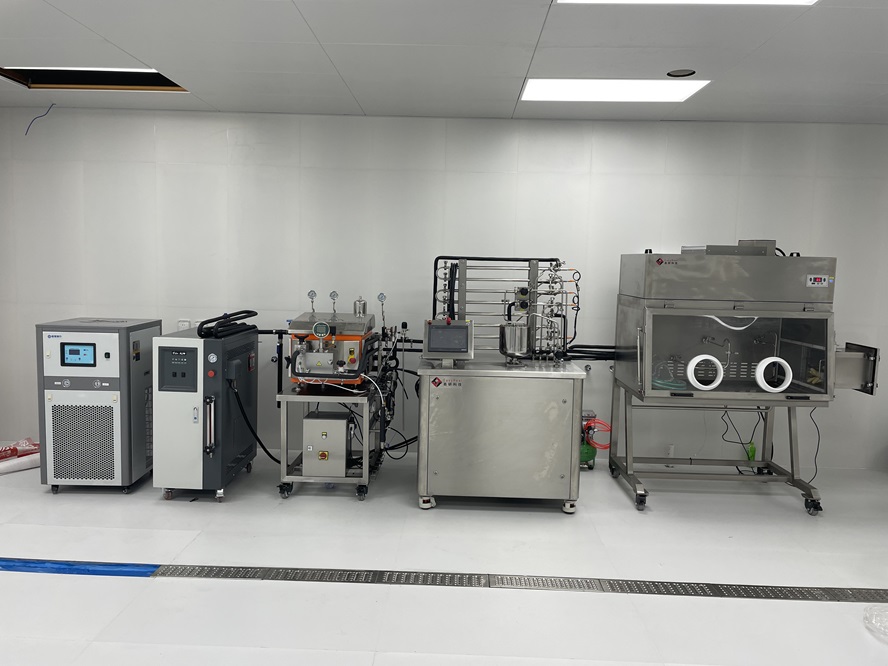

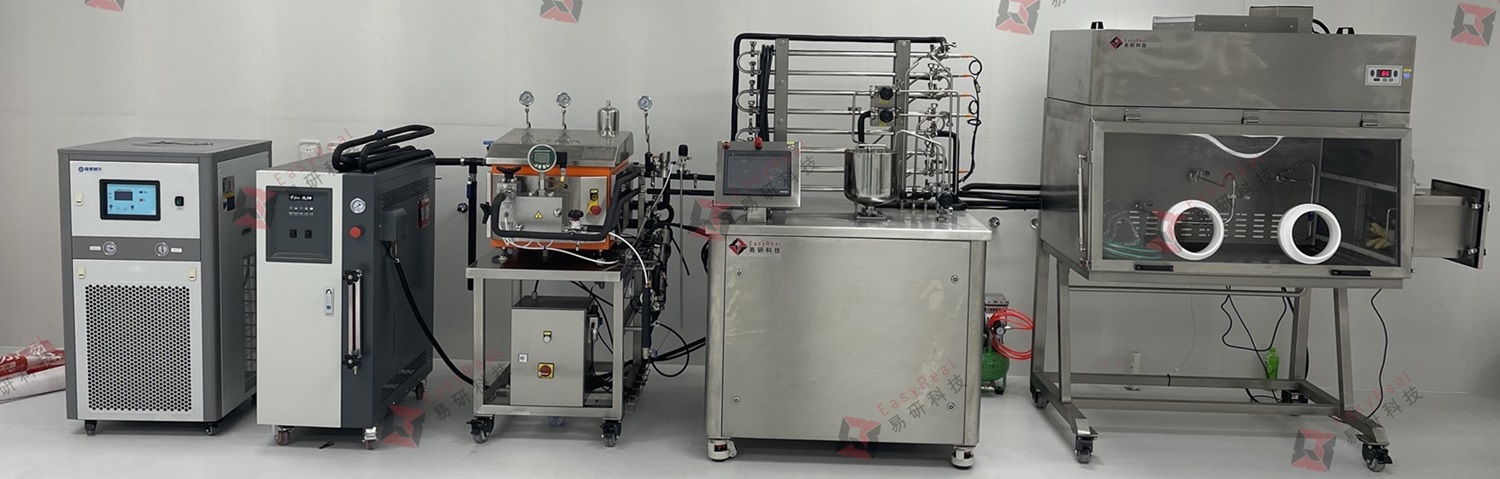

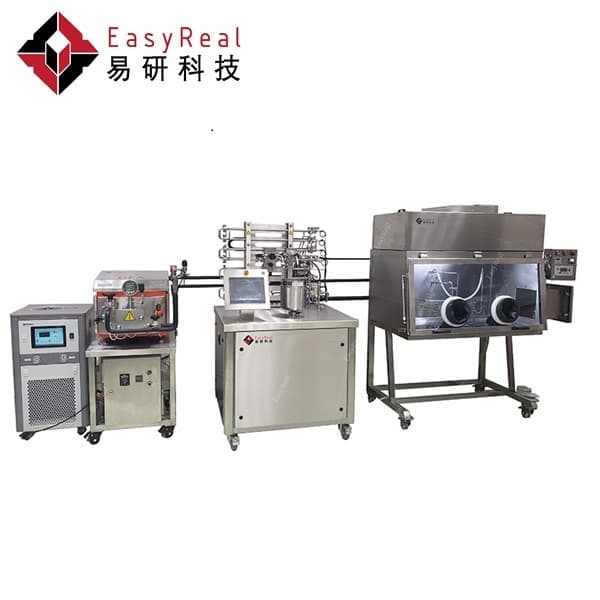

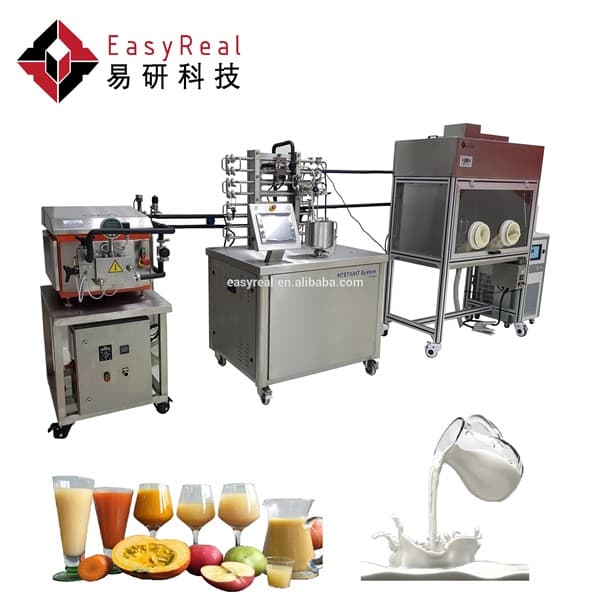

1. Lab UHT HTST Pasteurizer
2. Inline Upstream Homogenizer
3. Inline Aseptic Downstream Homogenizer
4. Aseptic filling Machine
5. Cold water Generator
6. Air Compressor
With over 20-year experience, combined with the most advanced science and technology, EasyReal Tech. has much practical application experience for supplying Lab UHT HTST Pasteurizer Plant to meet different actual needs. Depend on actual needs, EasyReal Tech could supply customized solutions which is easy to use with high quality and reliability.
Warmly welcome global friends come for visit, taking trials and inspect EasyReal’s Shanghai Factory which is located in Shanghai city, China.
