Fruit and Vegetable Hammer Crusher

Short Description:

The crusher is made of high-quality SUS304 stainless steel which has most advanced working principle, higher accuracy of manufacture and best crushing functions. When the fruits drop down to the feeding hopper, they will be crushed by the high-speed rotating knives; the crushed fruits will fly through the filter net on the drum to the storage groove under the centrifugal effect and action of gravity.


Product Detail

Product Tags

Application

It is mainly used for crushing of many kinds of fruits or vegetables, for example: tomato, apple, pear, strawberry, celery, fiddlehead etc. it can crush the raw materials into small particles, and it will be better for the next processing section.

Formation

The machine is composed of principal axis, motor, feed hopper, side cover, frame, bearing block, motor structure, etc.

Technical Parameter

Model

PS-1

PS -5

PS -10

PS -15

PS -25

Capacity: t/h

1

5

10

15

25

Power: Kw

2.2

5.5

11

15

22

Speed: r/m

1470

1470

1470

1470

1470

Dimention: mm

1100 × 570× 750

1300 × 660× 800

1700 × 660× 800

2950 × 800× 800

2050 × 800× 900

Above for reference, you have a wide choice depend on actual need.

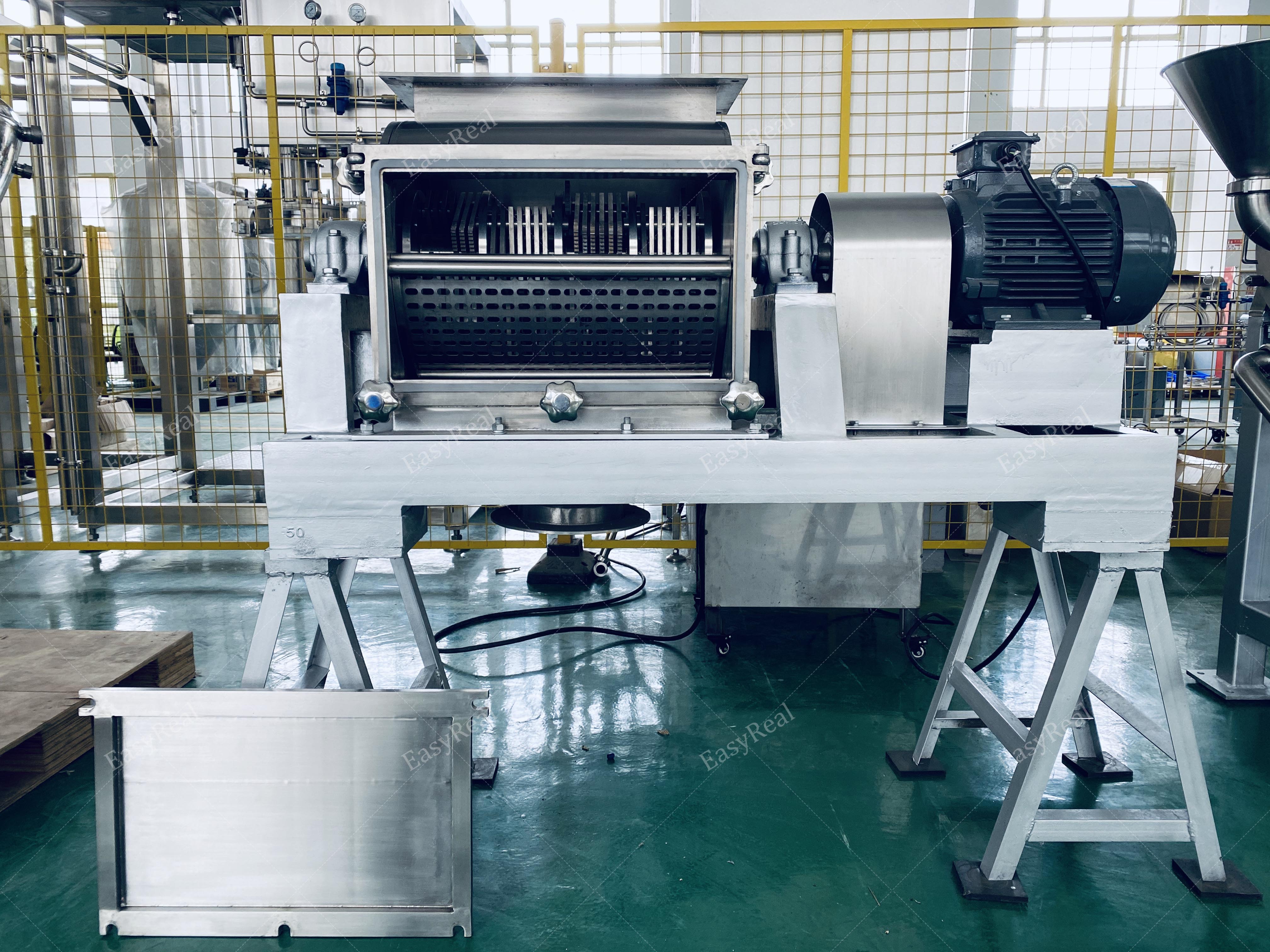

Product Showcase

04546e56049caa2356bd1205af60076

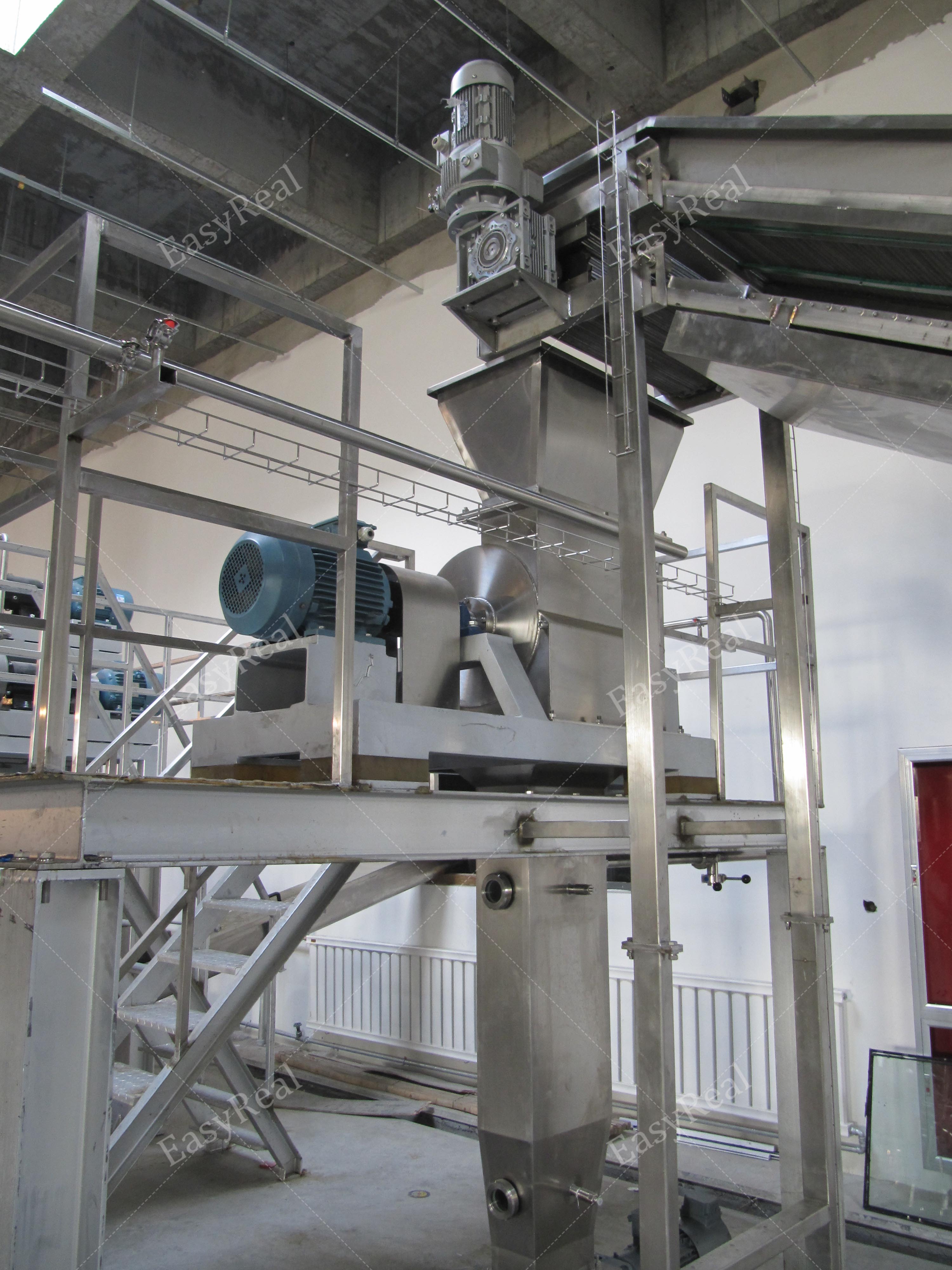

Site picture of crusher
