In the laboratory of universities and institutes and enterprises’ R&D department, it is completely simulated the industrial production sterilization in the laboratory, used for taste test of new product, research of product formulation, formula update, evaluation of product color, test of shelf life , etc.
It is suitable for wide range of visidity, and can precisely mimic product preparation, homogenization, aging, pasteurism, fast sterilization under ultra-temperature.
Raw Material→Receiving hopper→screw pump→preheating section→(homogenizer, optional) →sterilizing and holding section (85~150℃)→water cooling section→(ice water cooling section, optional) →aseptic filling cabinet.

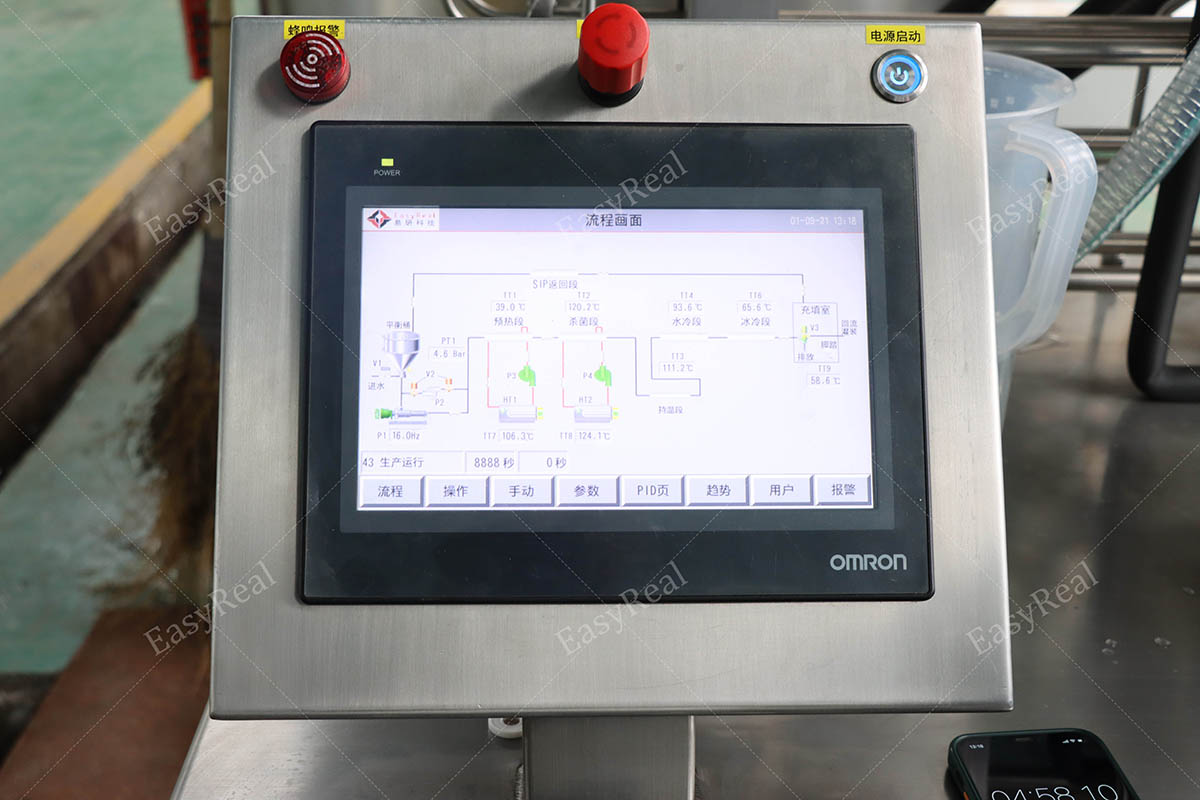

1. Independent control system, man-machine interface operation is adopted. The operation and state of the equipment are completed and displayed on the touch screen.
2. Completely simulates the industrial production sterilization in the laboratory.
3. Continuous processing with minimize product.
4. The sterilizer is integrated with the CIP and SIP function online, which can be configured homogeniser and aseptic filling cabinet on the needs.
5. All data can be printed, recorded, downloaded.
6. With high accuracy and good reproducibility, the trial result can be scale up to the industrial production.
7. Saving materials, energy and time for new product development and the rated capacity is 20 Liters per hour, and minimum batch is only 3 Liters.
8. It occupies a limited area.
9. Only electricity and water are required, the sterilizer is integrated with steam generator and refrigerator.
Name |

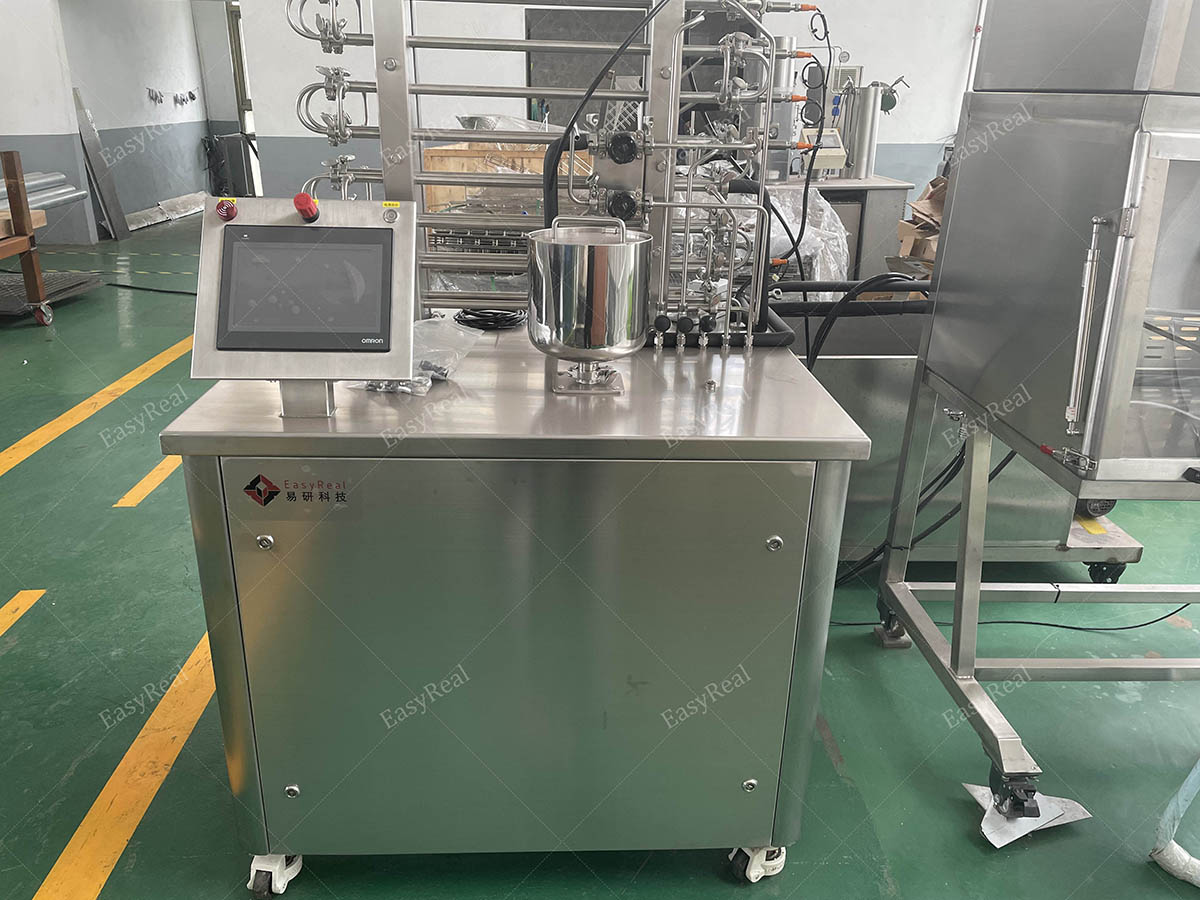

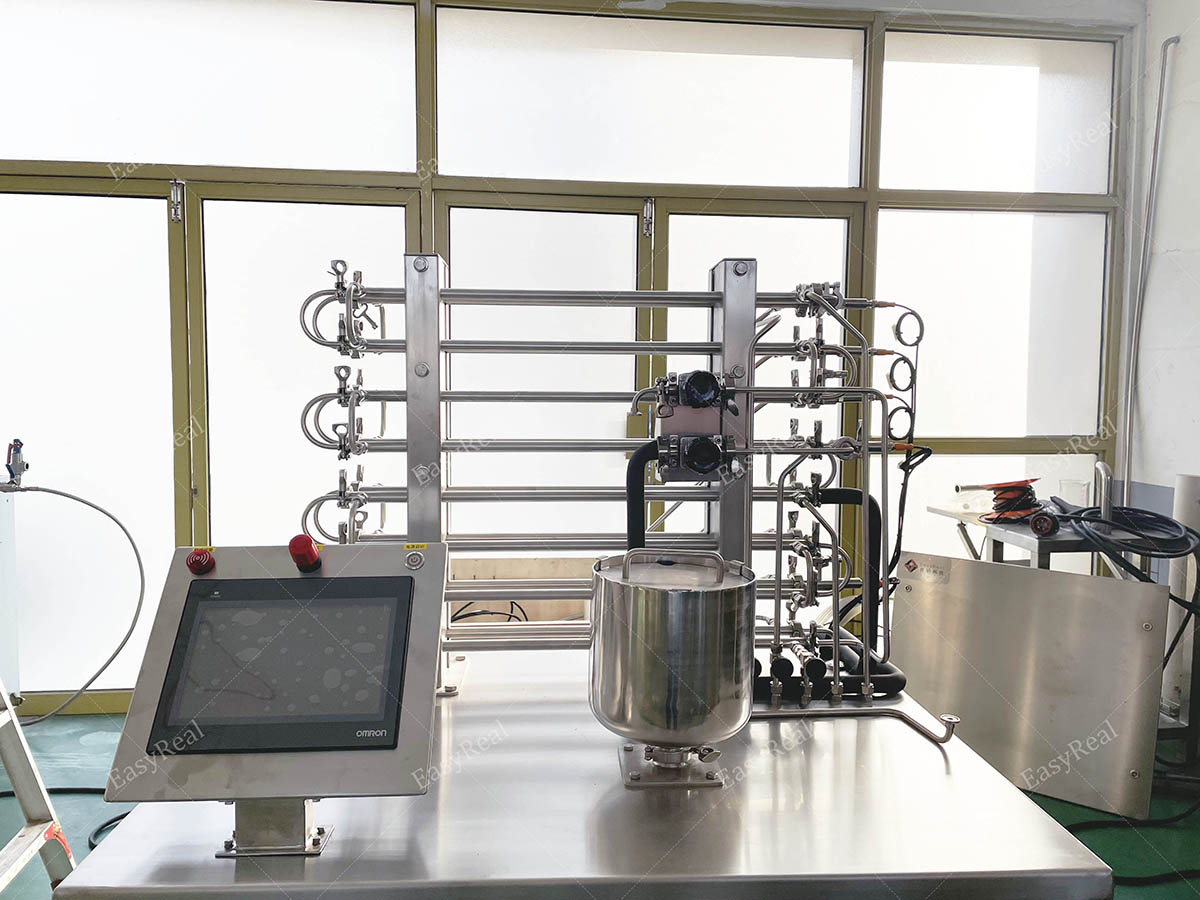

Lab Tubular UHT sterilizer |
Rated capacity: |
20 L/H |
Power: |
13 KW |
Max. pressure: |
10 bar |
Minimum batch feed: |
3 L |
SIP function |
Available |
CIP function |
Available |
Homogenization inline |
Optional |
Aseptic filling inline |
Optional |
Sterilization temperature: |
85~150 ℃ |
Holding time: Second |
3/5/10/20/30/300(Choose Either) |
Outlet teperature: ℃ |
Adjustable |
Dimension: |
1500×1050×1700 mm |
Above for reference, you have a wide choice depend on actual need. |
